웜 파워 드라이브 SW/SWM, SWJ/SWJM 시리즈

축상 플랜지 설치를 기본으로 한 전용 케이스를 채용하여 장치의 단순화에 공헌합니다.
출력축은 중실・중공의 양 타입을 가지런히 해, 파워록 ・테이퍼 부시축도 준비.
조립공수의 삭감에 공헌합니다.

특징

· 능력과 효율성 및 비용의 높은 균형

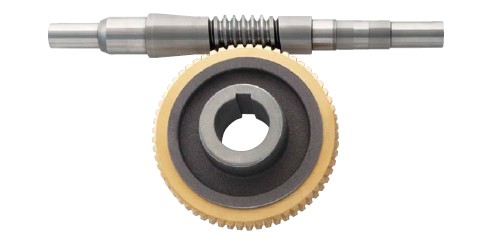

원통형웜을 채용하면서, 오랜 기술이 치면의 전달 능력을 극한까지 추구해 능력과 효율·코스트를 높은 차원에서 융합시킨 하이 밸런스 웜입니다.
· 높은 효율 · 에너지 절약

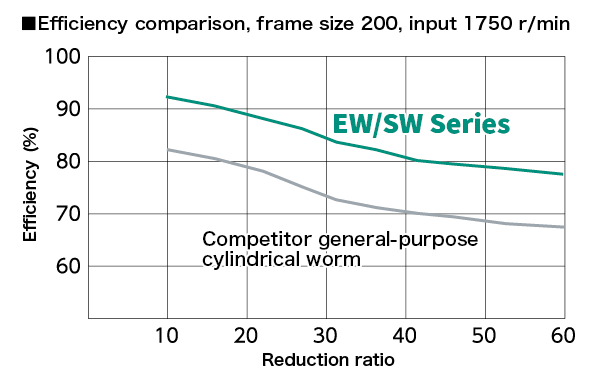

효율을 중시한 양호한 미끄럼 전달을 실시하기 위해 최적의 치면 형상을 추구하여 맞물림 손실이 적고 고효율을 실현하고 있습니다.
・오일 씰의 장수명화를 실현 - 독자적인 새로운 오일 씰 구조를 채용

새로운 오일 씰 구조는 오일 씰에 필터를 설정. 이 필터는 내부 마모 분말의 침입을 방지하고 오일 씰의 긴 수명을 실현합니다.

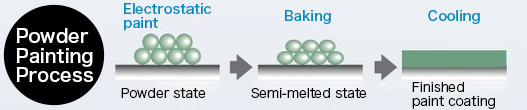

・박리에 강한 정전 분체 소부 도장 (※SWJ42 이하의 것)

신나 미사용의 에폭시 폴리에스테르계의 도료를 사용해 환경에 배려.

도료의 밀착성을 향상시켜, 상처나 도장막의 박리에 강하게 되어 있으므로, 이물 혼입 리스크를 저감시키는 것이 가능합니다.
・축상&플랜지 설치 디자인으로 장치의 단순화에 공헌합니다.
・소형~중형 사이즈를 구색(심간 25~200).
・SWJ 시리즈는 설치 방향 자유의 전용 케이스를 채용하고 있습니다.

제품 사양

SW 시리즈

웜기어 종류		원통형웜
사이즈		소형~중형
사이즈		心間 80mm～200mm
감속비	1단감속	1/10～1/60
감속비	고감속	1/100～1/3600
토크		300～5300 N・m

SWJ 시리즈

웜기어 종류		원통형웜
사이즈		소형
사이즈		心間 25mm～70mm
감속비	1단감속	1/10～1/60
감속비	고감속	1/100～1/3600
토크		12～300 N・m

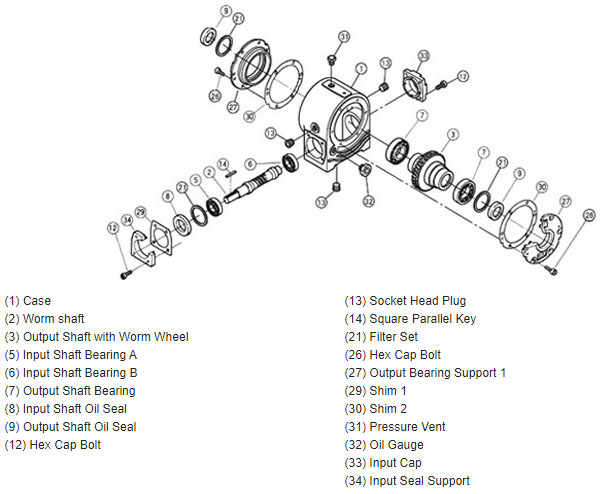

구조 (SW80~200)

SW80～200

본 그림은 대표예입니다.

카탈로그 · 취급설명서

모터 취급을 선택합니다.

형번 표시 예

・ 1단감속
모터 없음	SWJ	50	E	40	LF
모터 포함	SWJM	50	E	60	DF	040	SB
	SWJMR	50	E	15	DF	075	B
・ 고감속
모터 없음	SW	100	B	1200	R-LF
모터 포함	SWM	150	B	3000	L-RF	040	SB
	SWMR	150	B	300	L-RF	221	B
	\| 시리즈	\| 사이즈	\| 설치 방향	\| 감속비	\| 축 배치	\| 모터 용량	\| 모터 취급
		25 ～ 200	해설도 　1단감속 　고감속	10：1/10 ～ 3600：1/3600	해설도 　1단감속 　고감속	010：0.1kW ～ 550：5.5kW	아래 표 참조

모터 취급
시리즈	기호 설명
SWJM, SWM	S: 표준 모터 설치 출하 SB : 표준 브레이크 부착 모터 설치 출하 SX：지급 모터 설치 출하 Y：모터 고객이 설치
SWJMR, SWMR	기호 없음: 표준 모터 설치 출하 B: 표준 브레이크 부착 모터 설치 출하

■ 쯔바키형번내비

* 올바른 형번을 생성하기 위해서, 항목의 선택은 왼쪽에서 오른쪽으로 순서대로 실시해 주십시오.

＊설치 방향과 축 배치의 자세한 것은 카탈로그를 참조해 주십시오. 감속비 1/60 이하 감속비 1/100 이상

시리즈	설치 방향	축 배치		모터 용량	모터 취급
・모터 없음 EWJ 또는 EW SWJ 또는 SW ・모터 부착 0.1～0.4kW EWJM 또는 EWM SWJM 또는 SWM ・모터 부착 0.75～5.5kW EWJMR 또는 EWMR SWJMR 또는 SWMR	E 또는 T: E타입 또는 T형 B: B 타입 V: V 타입	감속비 1/60 이하		0.1kW 0.2kW 0.4kW 0.75kW 1.5kW (현행 형번 151) 1.5kW (형번 150) 2.2kW (현행 형번 221) 2.2kW (형번 220) 3.7kW 5.5kW	EW(J)M・SW(J)M
		E W	L R LR H LU RU LD RD LUD RUD		S: 표준 모터 설치 출하 SB : 표준 브레이크 부착 모터 설치 출하 SX：지급 모터 설치 출하 Y：모터 고객이 설치
		S W	DF LF RF SLF SRF
		감속비 1/100 이상			EW(J)MR・SW(J)MR
		E W	L-R R-L L-LR R-LR L-H R-H L-RU R-LU L-RD R-LD L-RUD R-LUD		기호 없음: 표준 모터 설치 출하 B: 표준 브레이크 부착 모터 설치 출하
		S W	L-RF R-LF L-SRF R-SLF		기호 없음: 표준 모터 설치 출하 B: 표준 브레이크 부착 모터 설치 출하

시리즈

EWJ・EW：다리 설치를 기본으로 한 타입입니다. 70 사이즈 이하는 EWJ 시리즈, 80 사이즈 이상은 EW 시리즈입니다.

SWJ・SW：플랜지 설치・축상 설치를 기본으로 한 타입입니다. 70 사이즈 이하는 SWJ 시리즈, 80 사이즈 이상은 SW 시리즈입니다.

EWJM(R)・EWM(R)：EWJ・EW 시리즈에 모터를 설치한 타입입니다.

SWJM(R)・SWM(R)：SWJ・SW 시리즈에 모터를 설치한 타입입니다.

사이즈

감속기의 크기를 나타냅니다.

설치 방향

E 또는 T: 입력축이 출력축 위에 있는 타입입니다.
감속비 1/60 이하의 EWJ·EWJM·SWJ·SWJM 시리즈의 경우는 E,
그 외의 경우는 T가 됩니다.

B: 입력축이 출력축 아래에 있는 타입입니다.

V: 출력축이 수직 방향이 되는 타입입니다.

자세한 내용은 카탈로그를 참조하십시오.

감속비

감속비를 나타냅니다.

1/60 이하는 1단감속, 1/100 이상은 2단 감속 됩니다.

축 배치

설치면과 입력축·출력축의 관계를 나타냅니다.

자세한 내용은 카탈로그를 참조하십시오.

모터 용량

모터 부착의 경우의 모터 용량을 나타냅니다.

모터 취급

S 또는 기호 없음 : 표준 모터를 당사에서 설치하여 출하합니다.

SB, B : 표준 브레이크 부착 모터를 당사에서 설치하여 출하합니다.

SX：고객에게 지급해 주신 모터를 당사에서 설치하여 출하합니다.

Y：모터를 고객이 설치할 수 있는 모터 플랜지 부착 타입입니다.

옵션 기호

Z: 인버터 구동에 대응하는 모터가 됩니다.

W: 실외에서의 설치에 대응합니다.

V: 전원의 전압 및 주파수가 400/400/440V, 50/60/60Hz입니다.

V1 : 전원의 전압 및 주파수가 380V, 50Hz입니다.

V2 : 전원의 전압 및 주파수가 380V, 60Hz입니다.

V3：전원의 전압 및 주파수가 415V, 50Hz가 됩니다.

V4 : 전원의 전압 및 주파수가 460V, 60Hz입니다.

N:CE 대응의 사양이 됩니다.

N2：UL 규격에 대응한 사양입니다.

*N3：CCC 사양입니다.

H：알루미늄제의 단자함 부착이 됩니다.

Q: 수동 브레이크 해제 가능

M: 모터 팬측에서 수동으로 회전 조작을 할 수 있습니다.

보조 기호

・단자 상자 위치

모터측에서 보고 왼쪽으로 회전한 위치로 단자함을 이동합니다.

P1：90˚ 흔들림 P2：180˚ 흔들림 P3：270˚ 흔들림

・단자 상자 출구 방향 방향

단자함을 향해 보고 오른쪽으로 회전한 위치로 입출구를 이동합니다.

・모터 용량 0.75kW 이하의 경우
D1：90˚ 흔들림 D2：180˚ 흔들림 D3：270˚ 흔들림

・모터 용량 1.5kW 이상인 경우
E1:90˚ 흔들림 E2:180˚ 흔들림 E3:270˚ 흔들림

상품 일람

※ 형번 클릭으로 상세 정보를 표시합니다. 모두 열기 모두 닫기

モータ無し　サイズ25　（形番SWJ25～）

감속비	출력축	E타입
1/10	중공	SWJ25E10DF
1/15	중공	SWJ25E15DF
1/20	중공	SWJ25E20DF
1/25	중공	SWJ25E25DF
1/30	중공	SWJ25E30DF
1/40	중공	SWJ25E40DF
1/50	중공	SWJ25E50DF
1/60	중공	SWJ25E60DF
