도면라이브러리　록풀리

록풀리 S 타입

풀리 형식

AF-S 표준 설치 AF-F 플랫 설치 BF-S 표준 설치 BF-F 플랫 설치 B-S 표준 설치 B-F 플랫 설치
피치
mm		 풀리
형식		 재질 사용 벨트 폭 mm
6 10 15 25 40 60
5 AF 탄소강 --- P5M10AF-□S□□□P5M15AF-□S□□□P5M25AF-□S□□□ --- ---
BF --- P5M10BF-□S□□□ --- --- --- ---
AF 고강도 알루미늄 합금 --- P5M10AF-A-□S□□□P5M15AF-A-□S□□□P5M25AF-A-□S□□□ --- ---
BF --- P5M10BF-A-□S□□□ --- --- --- ---
AF 도금 사양 --- P5M10AF-□S□□□-KP5M15AF-□S□□□-KP5M25AF-□S□□□-K --- ---
8 AF 탄소강 --- --- P8M15AF-□S□□□P8M25AF-□S□□□P8M40AF-□S□□□P8M60AF-□S□□□
BF --- --- P8M15BF-□S□□□P8M25BF-□S□□□P8M40BF-□S□□□P8M60BF-□S□□□
AF 고강도 알루미늄 합금 --- --- P8M15AF-A-□S□□□P8M25AF-A-□S□□□P8M40AF-A-□S□□□ ---
AF 도금 사양 --- --- P8M15AF-□S□□□-KP8M25AF-□S□□□-KP8M40AF-□S□□□-KP8M60AF-□S□□□-K
14 AF 탄소강 --- --- --- --- P14M40AF-□S□□□P14M60AF-□S□□□
B --- --- --- --- P14M40B-□S□□□P14M60B-□S□□□
AF 도금 사양 --- --- --- --- P14M40AF-□S□□□-KP14M60AF-□S□□□-K

록풀리 N 타입

풀리 형식

AF BF 설치 위치：A BF 설치 위치：B
피치
mm		 풀리
형식		 재질 사용 벨트 폭 mm
6 10 15 25 40 60
3 BF 알루미늄 디움 합금 --- P3M10BF-A-N□□□P3M15BF-A-N□□□ --- --- ---
5 AF 탄소강 --- --- P5M15AF-N□□P5M25AF-N□□ --- ---
BF --- P5M10BF-N□□P5M15BF-N□□P5M25BF-N□□ --- ---

록풀리 C 타입

풀리 형식

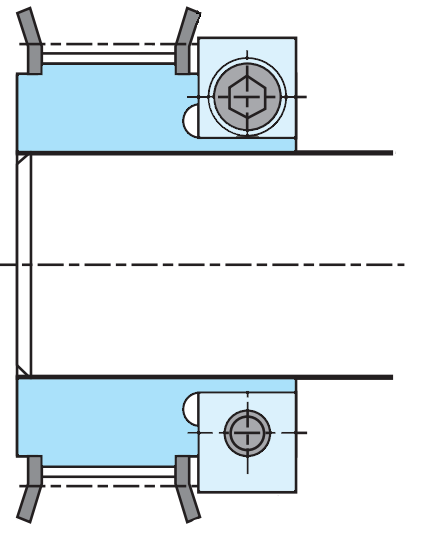

BF
피치
mm		 풀리
형식		 재질 사용 벨트 폭 mm
6 10 15 25 40 60
2 BF 알루미늄 디움 합금 P2M6BF-A-C□□ --- --- --- --- ---
3 탄소강 --- P3M10BF-C□□ --- --- --- ---
알루미늄 디움 합금 --- P3M10BF-A-C□□P3M15BF-A-C□□ --- --- ---
5 탄소강 --- P5M10BF-C□□P5M15BF-C□□ --- --- ---
알루미늄 디움 합금 --- P5M10BF-A-C□□P5M15BF-A-C□□ --- --- ---
